HDMI splitter 4K/Full hd 3D 1x4 eloszto

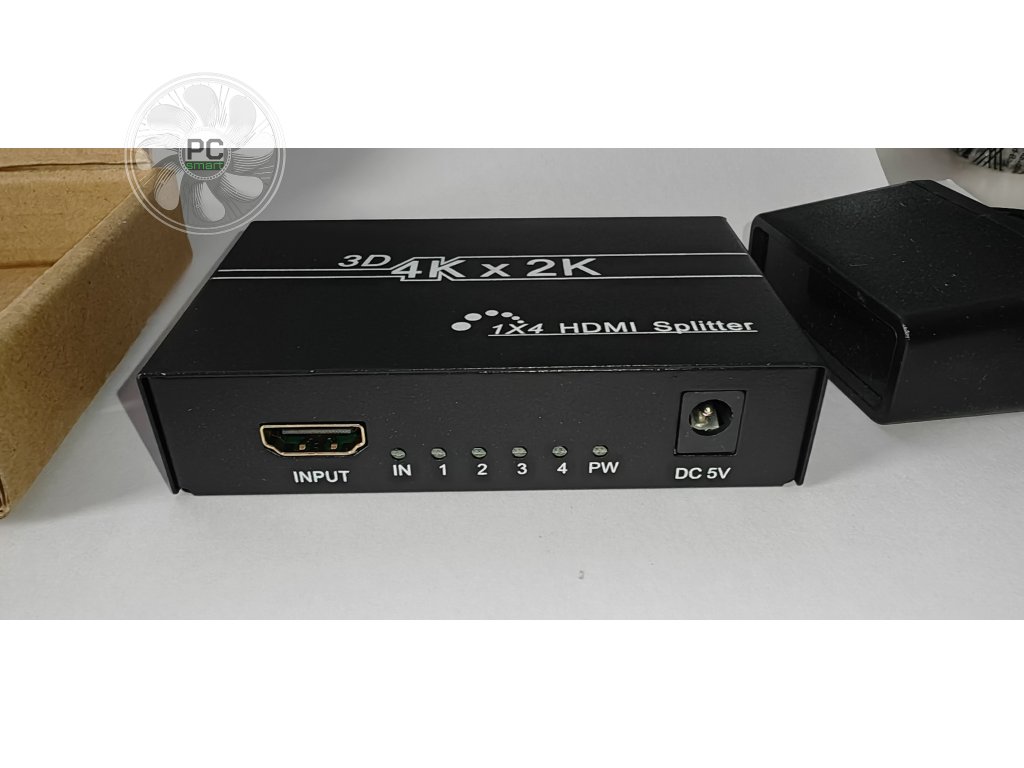

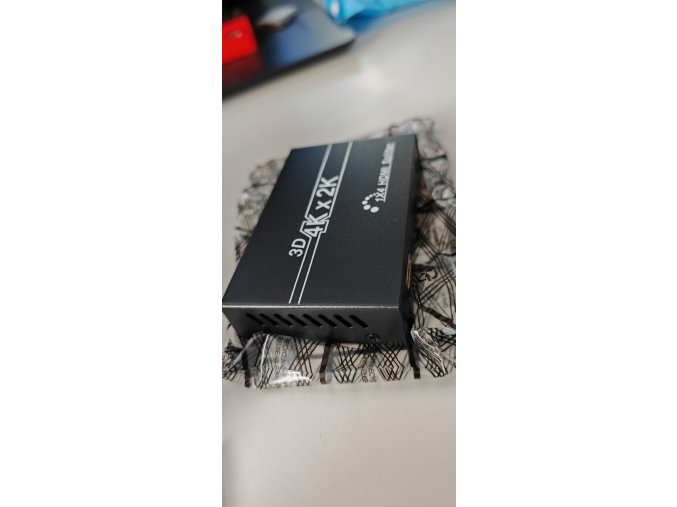

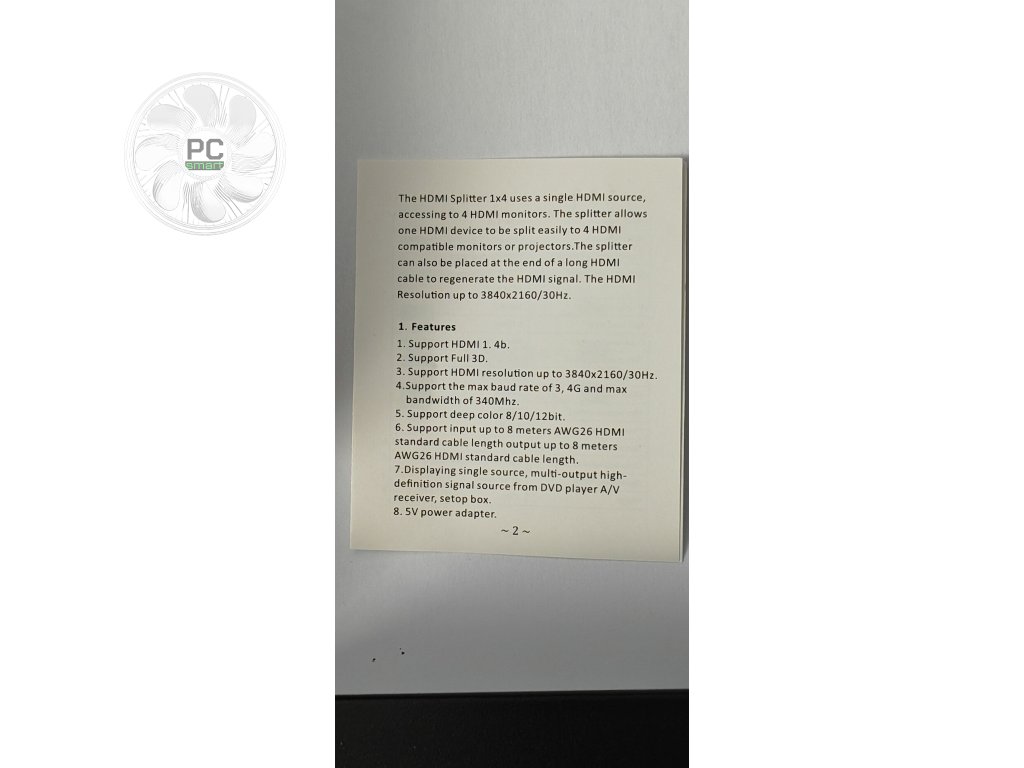

The HDMI Splitter 1×4 uses a single HDMI source, accessing to 4 HDMI monitors. The splitter allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors.The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The HDMI Resolution up to 3840x2160/30Hz.

1. Features

1. Support HDMI 1.4b. 2. Suрроrt FulІ 3D.

3. Support HDMI resolution up to 3840x2160/30Hz. 4.Support the max baud rate of 3,4G and max

bandwldth of 340Mhz.

5. Support deep color 8/10/12bit. 6. Support input up to 8 meters AWG26 HDMI standard cable length output up to 8 meters AWG26 HDMI standard cable length 7.Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, setop box.

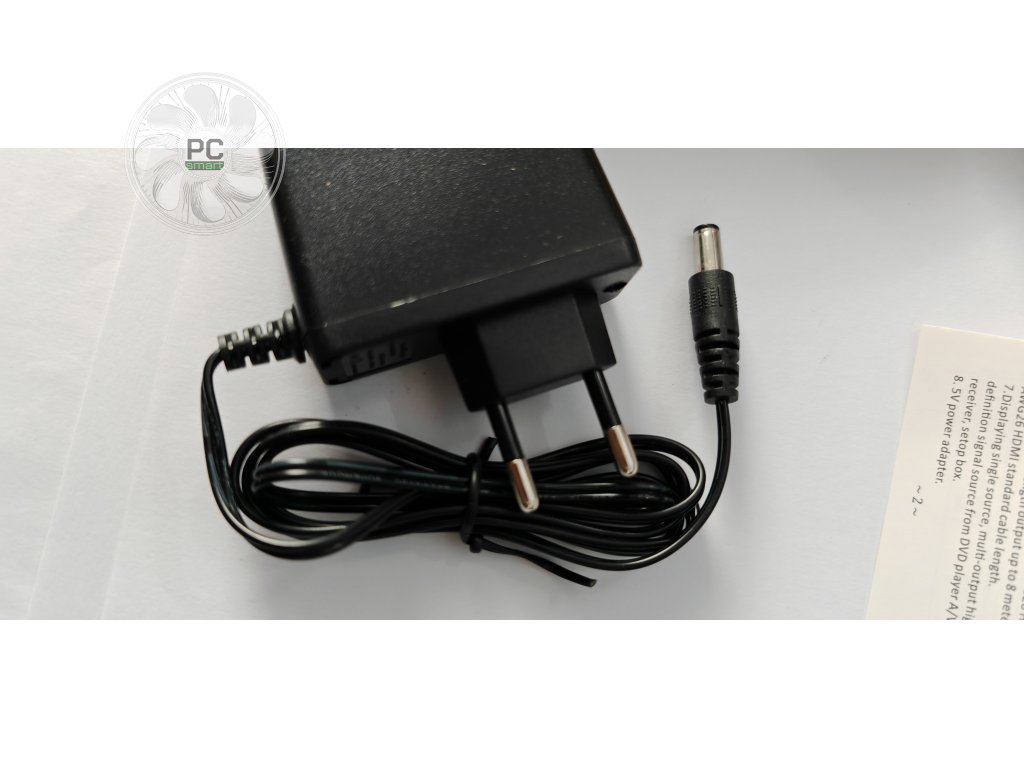

8.5V power adapter

~2~

2.Specification

HDMI version

HDMI resolution

Support video color format

Support audio format

Max bandwidth

Max baud rate

Input cable distance

Output cable distance

HDMI input

HDMI output

Max working current

Power adapter

HDMI 1.4b

Up to 3840*2160/30hz (4K@30hz)

8/10/12bit deep color

DTS-HD/Dolby-trueHD/DTS/Dolby-

AC3/DSD

340MHZ

3.4Gbps

≤8M AWG26 HDMI standard cable

S8MAWG26 HDMI standard cable

1 HDMI

4 HDMI

500mA

5V/1A

Operating temperature range -15 to 55C

Operating humidity range

Dimension(L*W'H)

Weight

5-90%RH(No condensation)

96*62*22mm

120g

~3~
